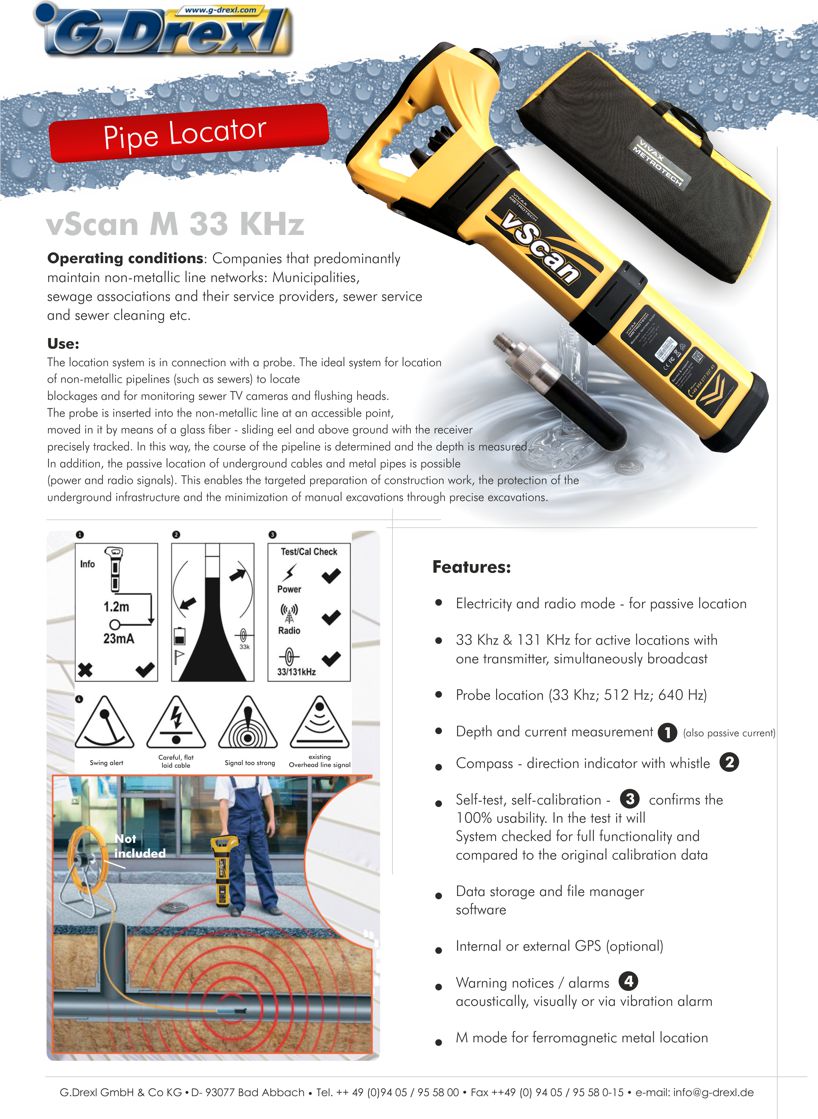

Pipe and Sewer Locator vScan M with Depth Location and Carrying Bag

The locating system works together with a sonde, which makes it the ideal system for locating non-metallic pipes such as sewers, for finding blockages and for tracking sewer cameras and jetting heads. The sonde is inserted into the non-metallic pipe at an accessible point and moved along it, for example with a glass fibre push cable. Above ground the receiver follows it precisely, so the route of the pipe is established and its depth measured.

Passive location of buried cables and metallic pipes is also possible, using power and radio signals. This allows construction work to be prepared precisely, protects buried infrastructure and reduces hand excavation through accurately targeted digging.

Field of use
Companies that mainly maintain non-metallic pipe networks: municipalities, wastewater associations and their service providers, sewer service and sewer cleaning.

Features

• Power and radio mode for passive location
• 33 kHz and 131 kHz for active location with a transmitter, transmitted simultaneously
• Sonde location at 33 kHz, 512 Hz and 640 Hz
• Depth and current measurement, including passive current
• Compass with direction display via arrows
• Self-test and self-calibration: the test checks full functionality and compares it against the original calibration data
• Data storage and file manager software
• Internal or external GPS, optional
• Warnings and alarms: audible, visual or vibration
• M mode for ferromagnetic metal location

The sonde and reel are not included in the scope of delivery.
