PIPE FOG MACHINE FOR DETECTING MISCONNECTIONS

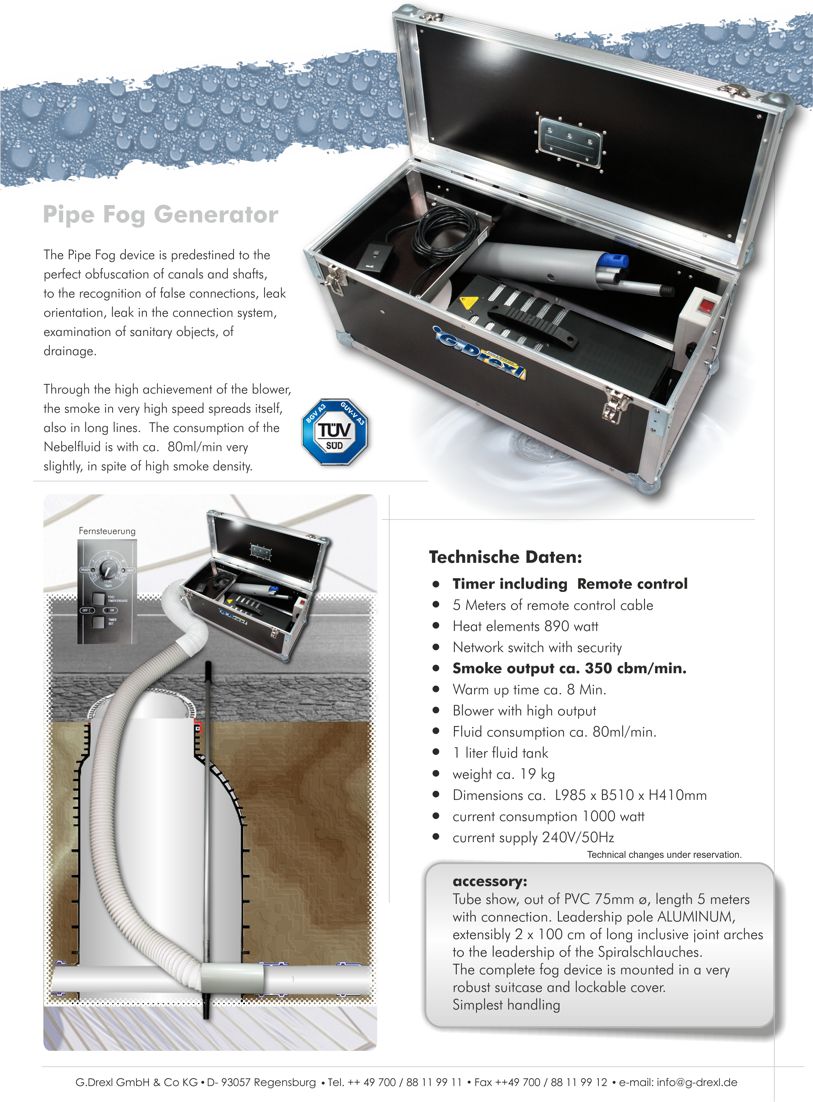

The sewer fog machine is ideal for filling sewers and manholes with fog: to detect misconnections, to locate leaks, in cases of leakage in the connection system, and to check sanitary fixtures and drainage systems.

Thanks to the high output of the radial blower, the fog spreads very quickly, even over long sections. Fluid consumption is very low at approx. 80 ml/min despite the high fog density.

Technical data

• Remote control with 5 metre cable
• Heating element 750 watts, central mains switch
• Smoke output approx. 350 cbm/min
• Heat-up time approx. 6 minutes
• Blower with high output
• Fluid consumption approx. 80 ml/min, 1 litre fluid tank
• Total weight approx. 12 kg
• Dimensions approx. L 705 × W 320 × H 320 mm
• Power consumption 1,000 watts, power supply 240 V / 50 Hz

Accessories

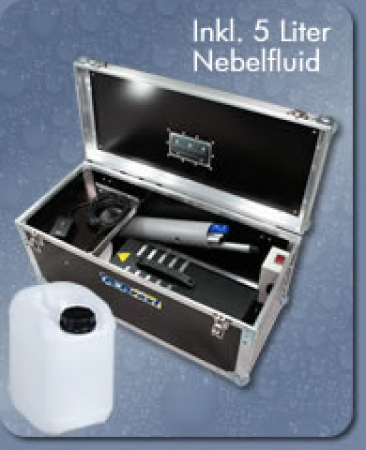

White PVC spiral hose, 125 mm Ø, 6 metres long with connection to the unit. Separable guide rod, 300 cm long, including the fitting to guide the spiral hose. The complete fog machine is mounted in a very sturdy case with aluminium panelling and a lockable lid. Includes 5 litres of fog fluid.

Subject to technical changes.
