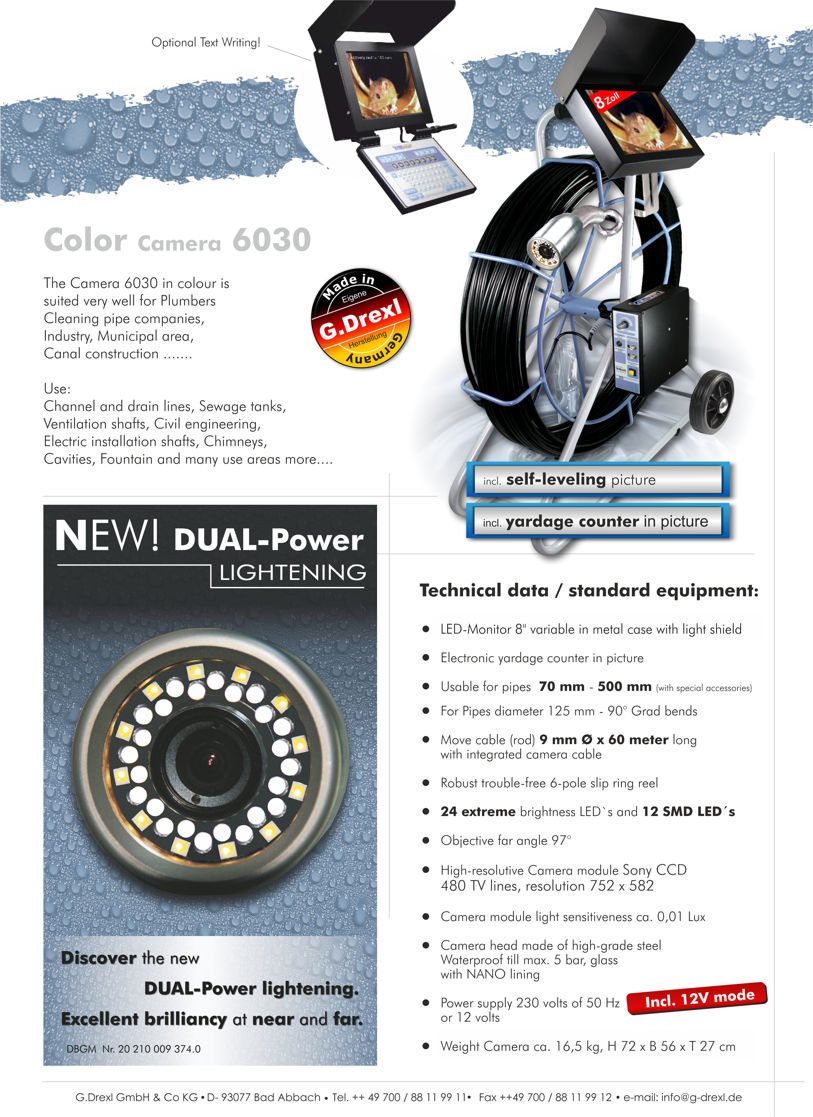

PIPE CAMERA 6030 COLOR 8" LED-MONITOR, INCL. METERAGE COUNTER, INCL. SELF LEVELING PICTURE, FROM DIAMETER 70 MM - 500 MM Ø, PUSH ROD 9 MM X 60 METER
NEW
The 6030 is a high-end sewer camera for pipe inspections from 70 mm up to around 500 mm diameter, depending on the accessories used. It passes 87° bends from DN 125.
Technical data
- 60 m push cable, 9 mm diameter
- 8" LED colour monitor in a sturdy aluminium housing with light shield, adjustable
- Electronic meterage display directly in the picture
- Powder-coated slip ring reel with 6-pole slip ring
- 24 ultra-white LEDs plus 12 SMD LEDs
- 97° wide-angle lens, self-levelling picture
- Sony CCD colour sensor, 480 TV lines, 752 x 582 px, automatic white balance
- Light sensitivity approx. 0.01 lux
- Stainless steel camera head, waterproof to max. 5 bar, nano-coated glass
- Power supply 230 V / 50 Hz or 12 V
- Weight approx. 16.5 kg, dimensions H 72 x W 56 x D 27 cm
Leasing is possible from €1,000 for business customers whose company has existed for at least one year.
