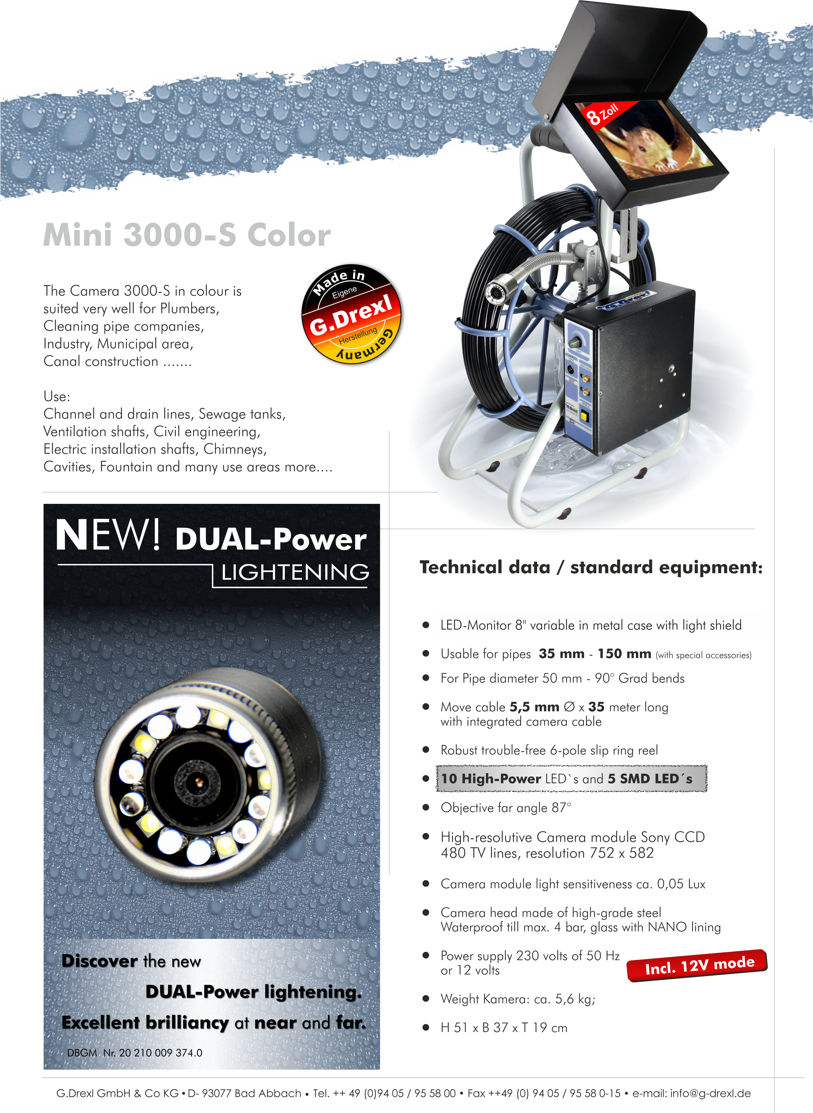

PIPE CAMERA MINI 3000-S COLOR, 8" LED-MONITOR, UP TO 4 BAR WATERPROOF, FOR PIPES FROM DIAMETER 35 MM - 150 MM Ø, PUSH ROD 5,5 MM X 35 METER

As a manufacturer of pipe and sewer cameras we build in Germany. The Mini 3000-S Color combines a considered design with current technology and decades of experience in development, sales and service.

What the Mini 3000-S Color is used for

• Drain and sewer lines
• Sewage tanks and wells
• Heating and cooling ducts
• Electrical shafts, cavities and chimneys

Technical data

• Pipe diameters from 35 mm to 150 mm, passes 90° bends from DN 50
• 40 m push cable (5.5 mm ø) with integrated camera cable
• Trouble-free slip ring reel with industrial ball bearings
• Stainless steel camera head (31 mm ø x 30 mm), waterproof to 4 bar
• CCD sensor with 420 TV lines
• Light sensitivity 0.05 lux for dark surroundings
• 87° wide-angle lens
• 15 ultra power LEDs
• Power supply 230 V (50 Hz) or 12 V
• Dimensions H 51 x W 37 x D 19 cm, weight approx. 5.6 kg

Thanks to the plug-in system the push cable can be changed in seconds, without tools. Leasing is possible from €1,000 for business customers whose company has existed for at least one year.
