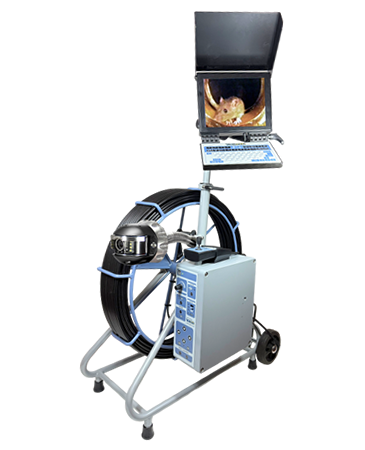

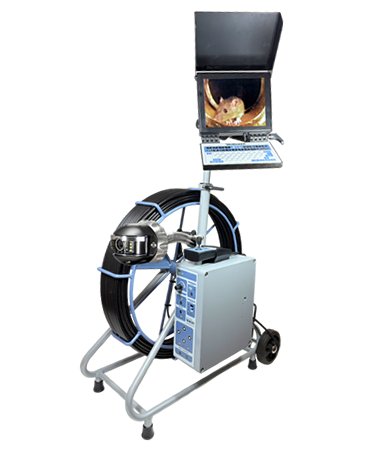

The 9020 pan and tilt camera inspects pipes from 100 to 350 mm diameter. With the optional 5030 interchangeable head the working range extends to 70 up to 600 mm, passing 87° bends from DN 100 when the optional roller skid is used.
Technical data
- 8.4" LCD monitor in a sturdy aluminium housing with light shield, adjustable
- WiFi support: live pictures sent to a smartphone or tablet via app
- Electronic meterage display directly in the picture
- Digital video recorder with a 16 GB SD card for video and stills
- 60 m push cable, 7.5 mm diameter
- Powder-coated slip ring reel with 6-pole slip ring
- 18 high-power SMD LEDs
- 1.4" CMOS colour sensor with 700 TV lines, 130° wide-angle lens, automatic horizon levelling
- Internal pressure monitoring with alarm
- Interchangeable camera head in an aluminium and stainless steel combination, waterproof to 5 bar
- Pan range +/- 110°, endless rotation, automatic pan and inspection functions
- Weight approx. 17 kg, dimensions H 72 x W 56 x D 33 cm
- Monitor rail (DBGM no. 20 2011 004 085.2)
Leasing is possible from €1,000 for business customers whose company has existed for at least one year.
