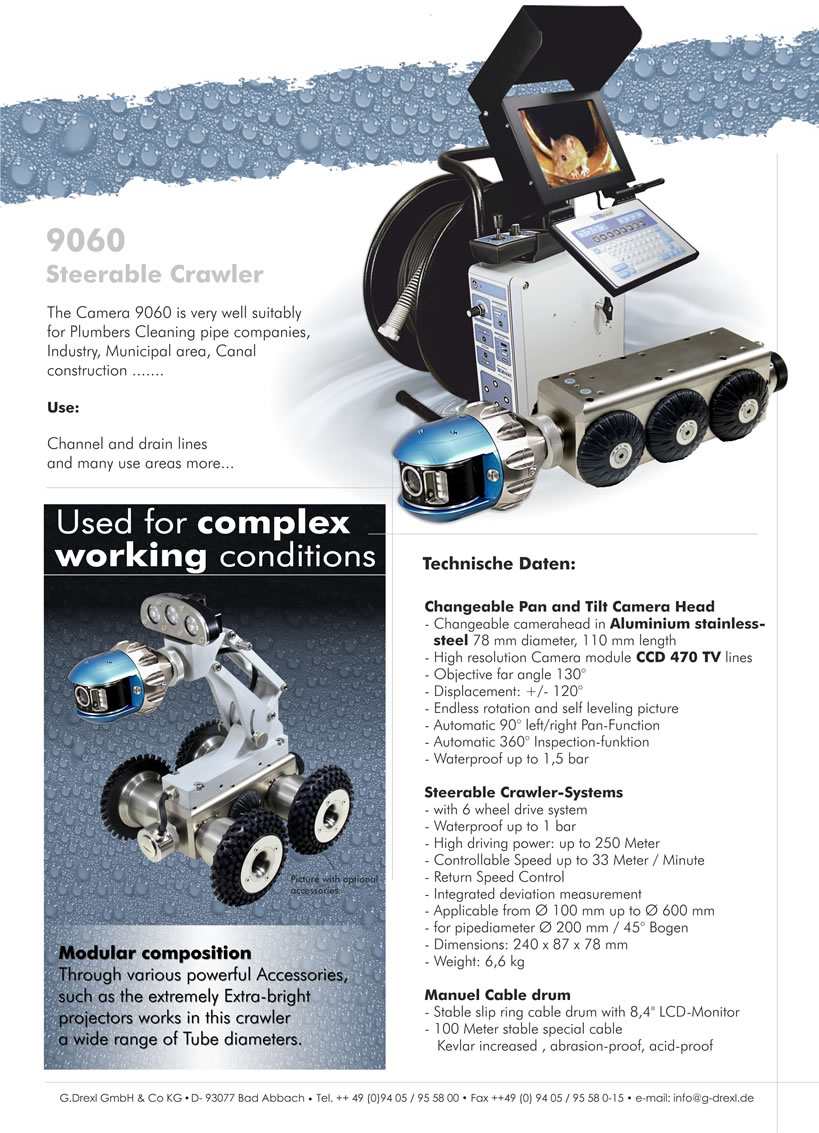

HIGH-TECH DIGITAL - STEERING CRAWLER SYSTEM 9060 WITH PAN AND TILT HEAD CAMERA AND LCD 8.4" IN ALUMINUM HOUSING

The 9060 Color crawler system suits drain cleaning companies, industry and municipal operations. It is used in pipes and sewers, ventilation shafts, cavities and many other applications. Its modular build allows a wide range of pipe diameters to be covered with accessories such as additional high-output projectors.

Plug-in pan and tilt head

• Camera head in an aluminium and stainless steel combination (78 mm diameter, 110 mm length)
• High-resolution colour camera module (470 lines)
• 130° wide-angle lens, pan range +/- 120°, endless rotation
• Professional slip clutch
• Dimmable cold LED light (18 high-power LEDs)
• Waterproof to 1.5 bar

Steerable crawler

• Drive: 6 driven, steerable wheels
• Pressure-tight to 1 bar
• Strong pulling power up to max. 250 metres
• Speed up to max. 33 metres per minute
• Integrated inclination measurement
• For pipes from ø 100 mm to ø 600 mm, passes 45° bends from ø 200 mm
• Dimensions (L x W x H) 240 x 87 x 78 mm, weight 6.6 kg

Manual cable drum

• Stable slip ring cable drum with 8.4" LED monitor
• 100 metres of hard-wearing camera cable with Kevlar reinforcement, abrasion-resistant and acid-resistant
• Prepared for plug-in camera heads
• Live WiFi picture transmission via app for iOS and Android

Leasing is possible from €1,000 for business customers whose company has existed for at least one year.
